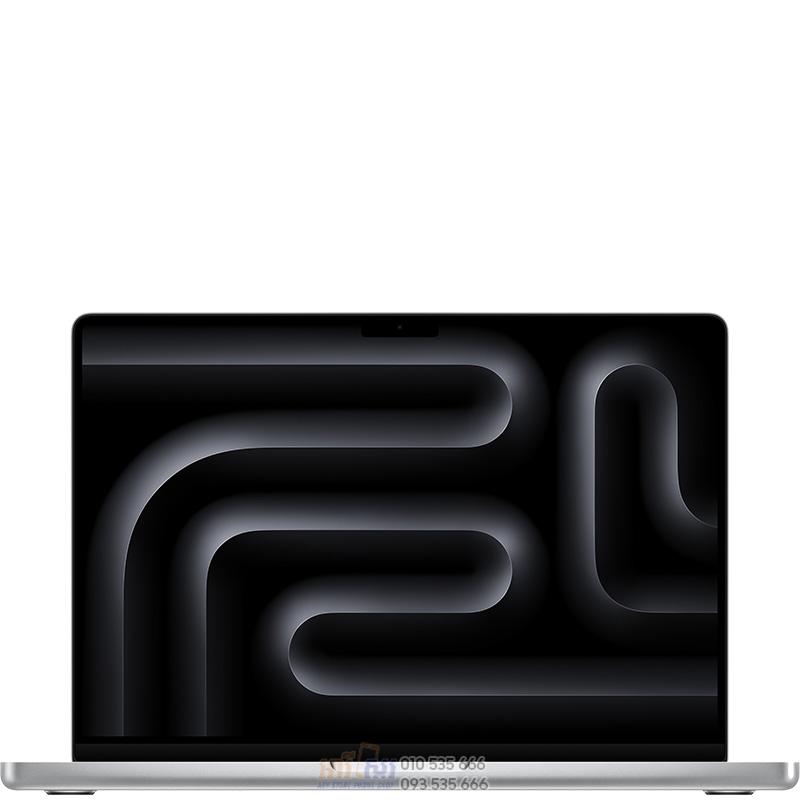

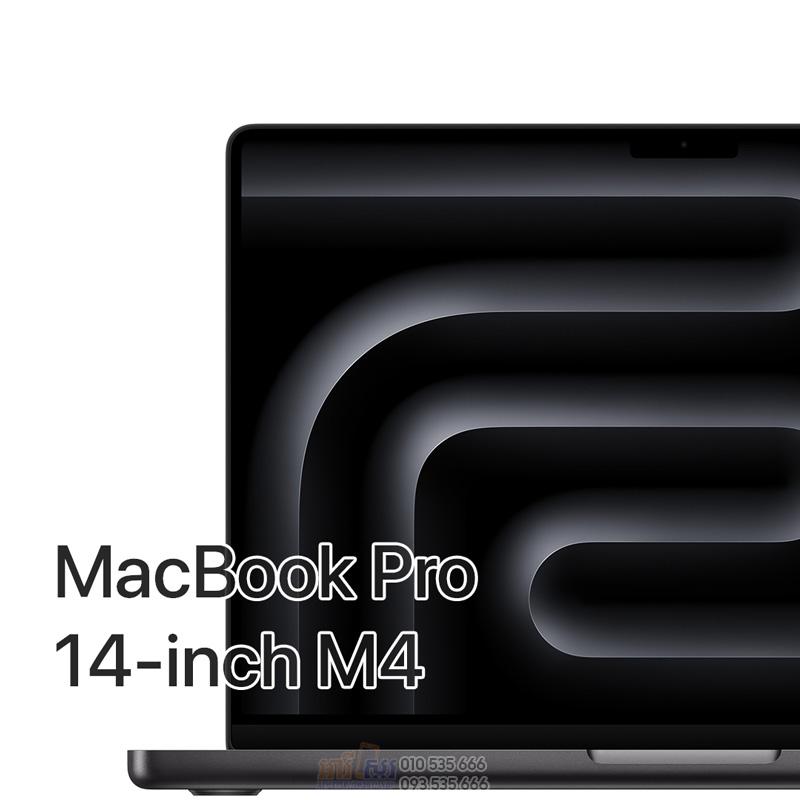

MacBook Pro M4 Max 14-inch

Finish

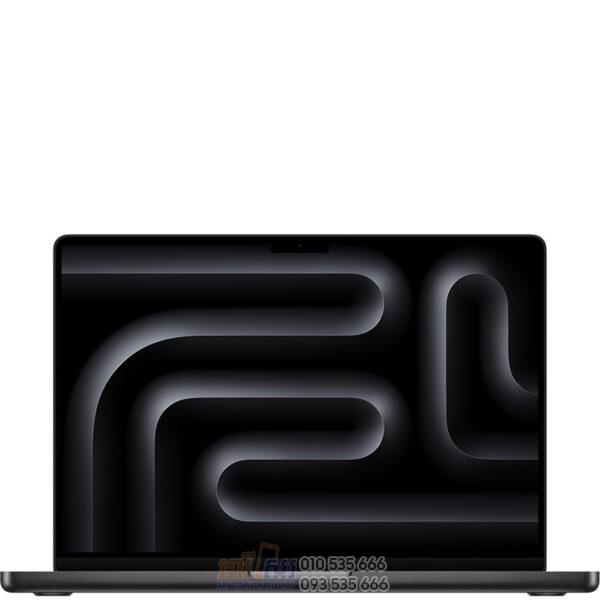

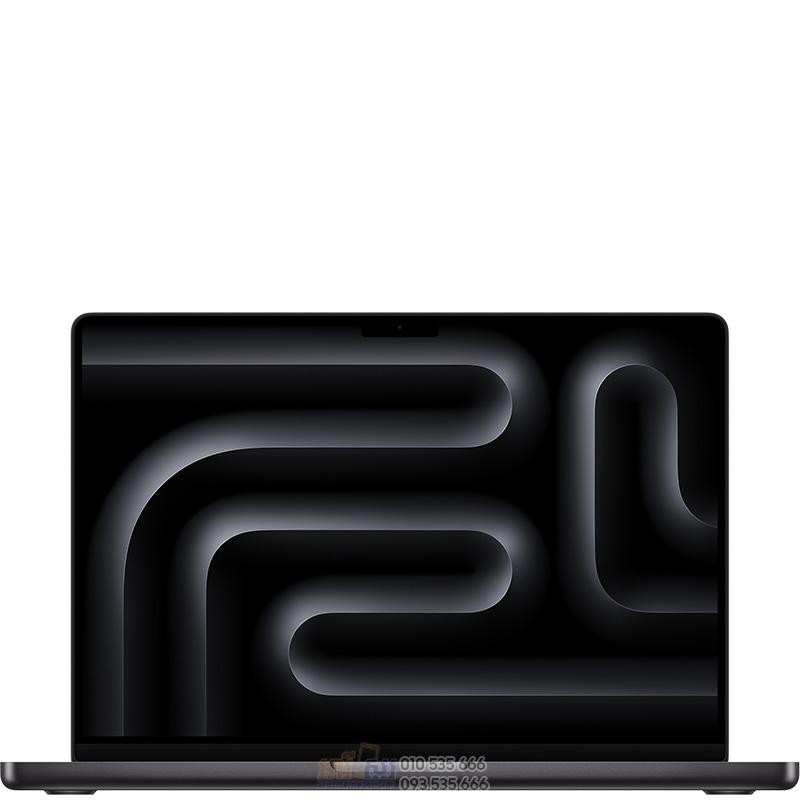

• • Space Gray

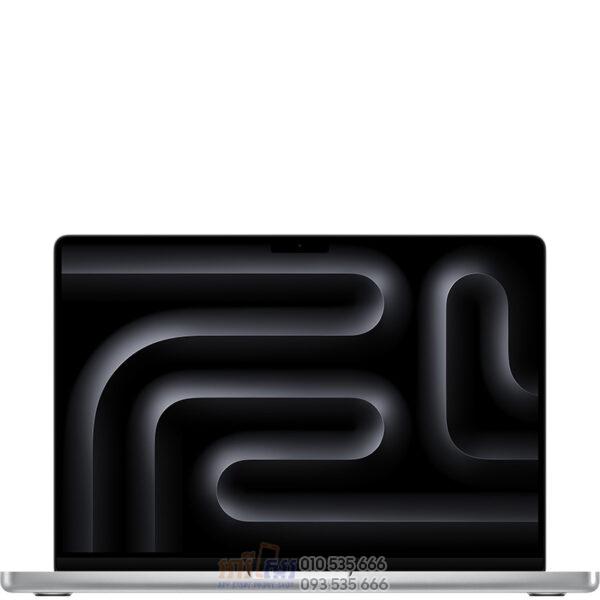

  • Silver

Chip

• Apple M4 chip
  • 10-core CPU with 4 performance cores and 6 efficiency cores
    10-core GPU
  • Hardware-accelerated ray tracing
  • 16-core Neural Engine
  • 120GB/s memory bandwidth
  • Media Engine
    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
    • Video decode engine
    • Video encode engine
    • ProRes encode and decode engine
    • AV1 decode
• Apple M4 Pro chip
  • 12-core CPU with 8 performance cores and 4 efficiency cores
    16-core GPU
  • Hardware-accelerated ray tracing
  • 16-core Neural Engine
  • 273GB/s memory bandwidth
  • Media Engine
    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
    • Video decode engine
    • Video encode engine
    • ProRes encode and decode engine
    • AV1 decode
• Apple M4 Pro chip
  • 14-core CPU with 10 performance cores and 4 efficiency cores
  • 20-core GPU
  • Hardware-accelerated ray tracing
  • 16-core Neural Engine
  • 273GB/s memory bandwidth
  • Media Engine
    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
    • Video decode engine
    • Video encode engine
    • ProRes encode and decode engine
    • AV1 decode
• Apple M4 Max chip
  • 14-core CPU with 10 performance cores and 4 efficiency cores
  • 32-core GPU
  • Hardware-accelerated ray tracing
  • 16-core Neural Engine
  • 410GB/s memory bandwidth
  • Media Engine
    • Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
    • Video decode engine
    • Two video encode engines
    • Two ProRes encode and decode engines
    • AV1 decode

Apple Intelligence

• Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

Display

• Liquid Retina XDR display
• 14.2-inch (diagonal) Liquid Retina XDR display; 3024-by-1964 native resolution at 254 pixels per inch
• XDR (Extreme Dynamic Range)
  • 1,000,000:1 contrast ratio
  • XDR brightness: 1000 nits sustained full-screen, 1600 nits peak3 (HDR content only)
  • SDR brightness: up to 1000 nits (outdoor)
•  Color
  • 1 billion colors
  • Wide color (P3)
  • True Tone technology
• Refresh rates
  • ProMotion technology for adaptive refresh rates up to 120Hz
  • Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz
• Configurable with:
  • Nano-texture display

Memory

• 16GB unified memory
• 24GB unified memory
• 36GB unified memory

Battery and Power

• M4
  • Up to 24 hours video streaming
  • Up to 16 hours wireless web
  • 72.4-watt-hour lithium-polymer battery
  • 70W USB-C Power Adapter
  • USB-C to MagSafe 3 Cable
  • Fast-charge capable with 96W USB-C Power Adapter
• M4 Pro
  • Up to 22 hours video streaming
  • Up to 14 hours wireless web
  • 72.4-watt-hour lithium-polymer battery
  • 70W USB-C Power Adapter (included with M4 Pro with 12-
  • core CPU)
  • 96W USB-C Power Adapter (included with M4 Pro with 14-core CPU, configurable with M4 Pro with 12-core CPU)
  • USB-C to MagSafe 3 Cable
  • Fast-charge capable with 96W USB-C Power Adapter
• M4 Max
  • Up to 18 hours video streaming
  • Up to 13 hours wireless web
  • 72.4-watt-hour lithium-polymer battery
  • 96W USB-C Power Adapter
  • USB-C to MagSafe 3 Cable
  • Fast-charge capable with 96W USB-C Power Adapter

Storage

• Available
  • 512GB
  • 1TB

Charging and Expansion

• SDXC card slot
• HDMI port
• 3.5 mm headphone jack
• MagSafe 3 port
• M4
  • Three Thunderbolt 4 (USB-C) ports with support for:
  • Charging
  • DisplayPort
  • Thunderbolt 4 (up to 40Gb/s)
  • USB 4 (up to 40Gb/s)

• M4 Pro and M4 Max
• • Three Thunderbolt 5 (USB-C) ports with support for:
  • Charging
  • DisplayPort
  • Thunderbolt 5 (up to 120Gb/s)
  • Thunderbolt 4 (up to 40Gb/s)
  • USB 4 (up to 40Gb/s)

Display Support

• M4 and M4 ProSimultaneously supports full native resolution on the built-in display at 1 billion colors and:
  Up to two external displays with up to 6K resolution at 60Hz over Thunderbolt, or one external display with up to 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI
  One external display supported at 8K resolution at 60Hz or one external display at 4K resolution at 240Hz over HDMI
• M4 MaxSimultaneously supports full native resolution on the built-in display at 1 billion colors and:
  Up to four external displays: Up to three external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 4K resolution at 144Hz over HDMI
  Up to three external displays: Up to two external displays with 6K resolution at 60Hz over Thunderbolt and one external display with up to 8K resolution at 60Hz or one external display with 4K resolution at 240Hz over HDMI
• Thunderbolt 4 digital video outputSupport for native DisplayPort 1.4 output over USB-C



• Thunderbolt 5 digital video outputSupport for native DisplayPort 2.1 output over USB-C



• HDMI digital video outputSupport for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz

Video Playback

• Supported formats include HEVC, H.264, AV1, and ProRes
• HDR with Dolby Vision, HDR10+/HDR10, and HLG

Keyboard and Trackpad

• Backlit Magic Keyboard with:
• 78 (U.S.) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted‑T arrangement
• Touch ID
• Ambient light sensor
• Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures


Wireless

• Wi-Fi: Wi-Fi 6E (802.11ax)
• Bluetooth: Bluetooth 5.3

Camera

• 12MP Center Stage camera with support for Desk View
• 1080p HD video recording
• Advanced image signal processor with computational video

Audio

• High-fidelity six-speaker sound system with force-cancelling woofers
• Wide stereo sound
• Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers
• Spatial Audio with dynamic head tracking when using AirPods (3rd generation), AirPods 4, AirPods Pro, AirPods Pro 2, and AirPods Max
• Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
• 3.5 mm headphone jack with advanced support for high-impedance headphones
• HDMI port supports multichannel audio output

Operating Requirements

• Line voltage: 100V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating temperature: 50° to 95° F (10° to 35° C)
• Storage temperature: –13° to 113° F (–25° to 45° C)
• Relative humidity: 0% to 90% noncondensing
• Operating altitude: tested up to 10,000 feet (3000 meters)
• Maximum storage altitude: 15,000 feet
• Maximum shipping altitude: 35,000 feet

Size and Weight

• Height: 0.61 inch (1.55 cm)
• Width: 12.31 inches (31.26 cm)
• Depth: 8.71 inches (22.12 cm)
• Weight (M4): 3.4 pounds (1.55 kg)
• Weight (M4 Pro): 3.5 pounds (1.60 kg)
• Weight (M4 Max): 3.6 pounds (1.62 kg)
