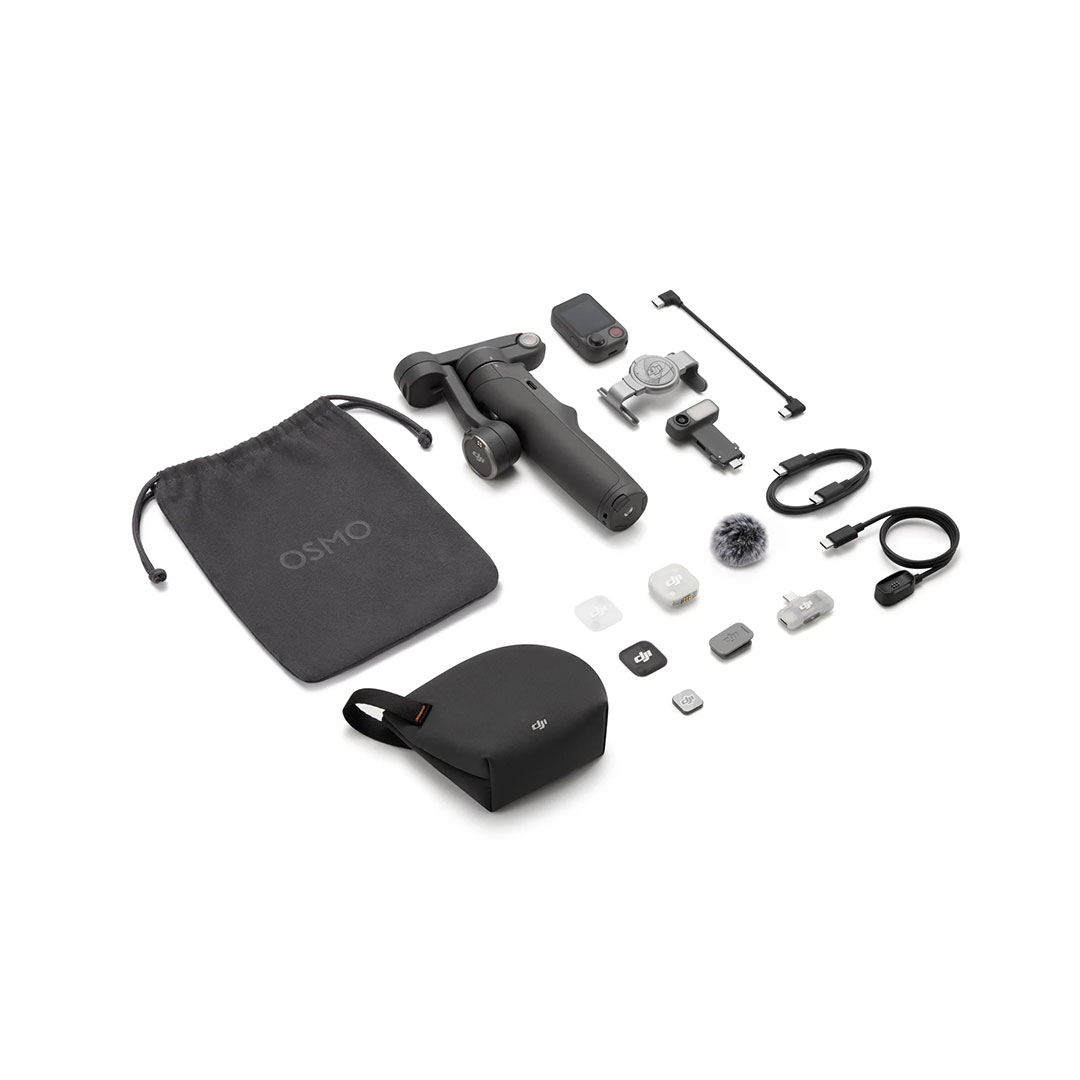

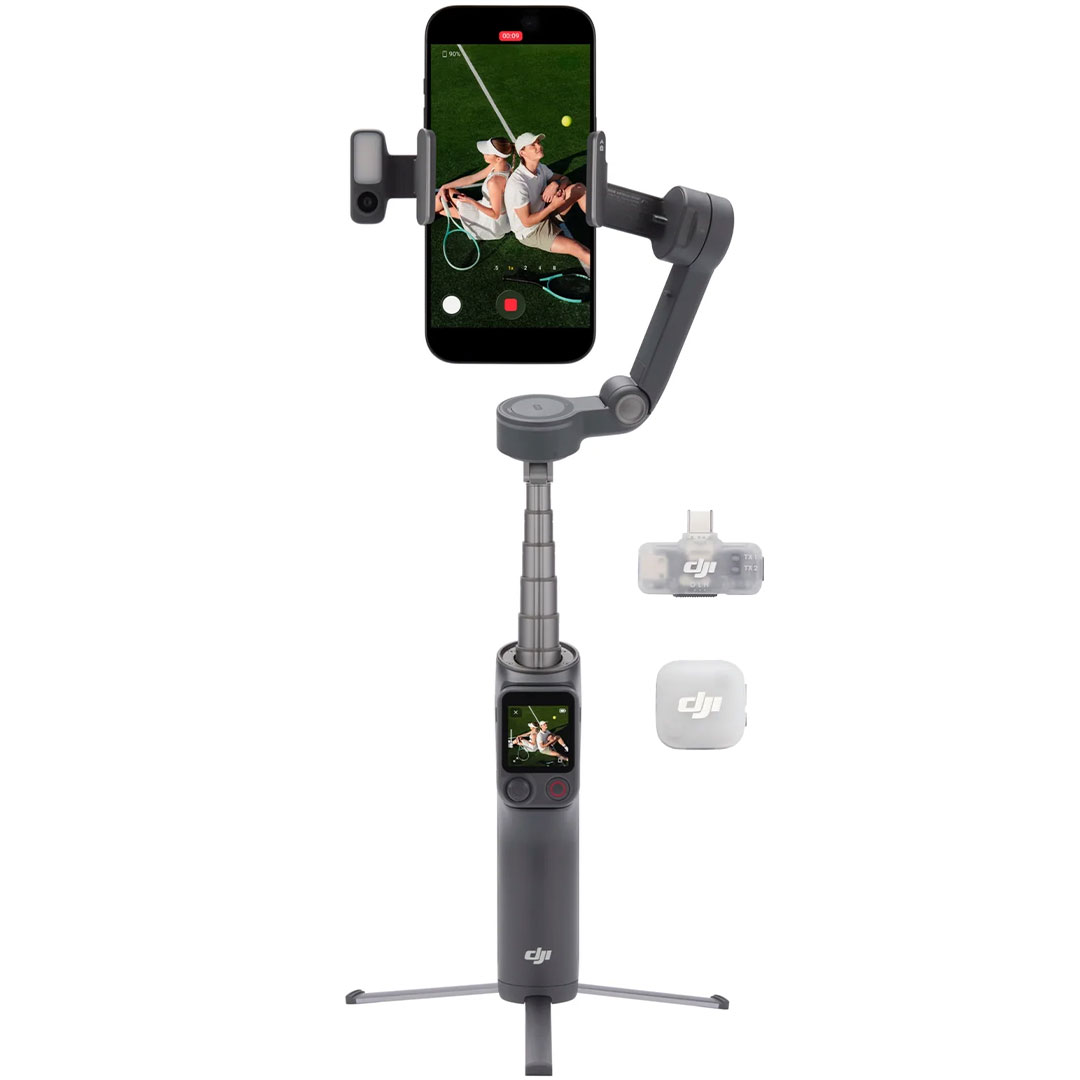

DJI Osmo Mobile 8P – Creator Combo Handheld Gimbal

General

• Dimensions
  • Unfolded: 291×110×101 mm (L×W×H)
  • Folded: 196×105×38 mm (L×W×H)
• Weight
  • Gimbal + Built-in Tripod + Magnetic Phone Clamp 5 + Multifunctional Module 2 + Osmo FrameTap: Approx. 386 g
• Extension Rod
  • Built-in Extension Rod
  • Max Extension Length: 215 mm
• Compatible Phone Weight
  • 170-300 g
• Compatible Phone Thickness
  • 6.9-11 mm
• Compatible Phone Width
  • 67-84 mm
• Bottom Port
  • 1/4″-20 UNC port

Grip Tripod

• Dimensions
  • Built-in Tripod
  • Length: 82 mm

Battery

• Type
  • Li-Po 1S
• Capacity
  • 3350 mAh
• Energy
  • 12.06 Wh
• Charging Temperature
  • 5° to 40° C (41° to 104° F)
• Operating Temperature
  • 0° to 40° C (32° to 104° F)
• Operating Time
  • Approx. 10 hours
• Charging Time
  • Approx. 2.5 hours
• Gimbal Charging Port
  • USB-C
• Phone Charging
  • Supported

Gimbal

• Controllable Range
  • Pan: 360° (unlimited rotation)
  • Roll: -52° to 256°
  • Tilt: -37° to 55°
• Mechanical Range
  • Pan: 360° (unlimited rotation)
  • Roll: -77° to 255°
  • Tilt: -224° to 100°
• Max Control Speed
  • 90°/s

Wireless Mode

• Model
  • Bluetooth 5.3

Software

• App
  • DJI Mimo

Multifunctional Module 2

• Fill Light Illuminance
  • 40 lux
• Fill Light Color Temperature
  • 2500-6500 K

Osmo FrameTap

• Wi-Fi Video Transmission Distance
  • 25 m
• Wi-Fi Protocol
  • 802.11 a/b/g/n/ac/ax
• Wi-Fi Operating Frequency
  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz
• Wi-Fi Transmitter Power (EIRP)
  • 2.4 GHz: < 20 dBm (CE/SRRC/MIC)
  • 5.8 GHz: < 23 dBm (SRRC), < 14 dBm (CE)
• Bluetooth Video Transmission Distance
  • 10 m
• Bluetooth Protocol
  • Bluetooth 5.4, BR/EDR
• Bluetooth Operating Frequency
  • 2.400-2.4835 GHz
• Bluetooth Transmitter Power (EIRP)
  • < 10 dBm
• Touchscreen
  • Size: 1.4 inches
  • Resolution: 240×240
  • Brightness: 800 cd/m² ± 10%
  • Frame Rate: 60 Hz
• Battery
  • Li-Po 1S
• Charging Time
  • 2.5 hours
• Operating Time
  • Up to 4.5 hours in standby mode (device powered on, no user operations)
• Operating Temperature
  • 0° to 40° C (32° to 104° F)
• Storage Temperature
  • 10° to 30° C (50° to 86° F)
• Charging Temperature
  • 5° to 40° C (41° to 104° F)
• GNSS
  • GPS L1 + Beidou B1 + Galileo E1 + QZSS L1 + GLONASS G1
• Dimensions
  • 53×37×19 mm (L×W×H)
• Weight
  • 29 g
